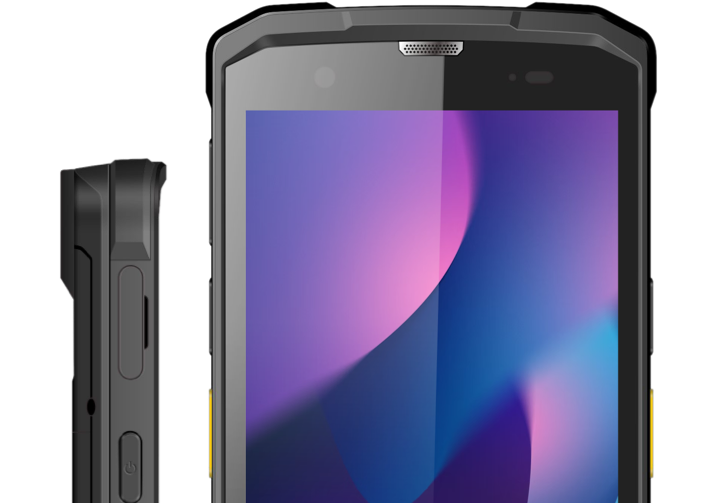

RADION R80
All-in-One Industrial Smart Device
The Radion R80 is more than a rugged smart device—it’s a multi-functional mobile command center designed for demanding industrial environments. Combining a high- performance processor, real-time communication, advanced tracking, patrol management, and data scanning, the R80 supports a wide range of field operations across security, logistics, warehousing, manufacturing, and utilities.
Rugged TabletRADION R80
All-in-One Industrial Smart Device
The Radion R80 is more than a rugged smart device—it’s a multi-functional mobile command center designed for demanding industrial environments. Combining a high- performance processor, real-time communication, advanced tracking, patrol management, and data scanning, the R80 supports a wide range of field operations across security, logistics, warehousing, manufacturing, and utilities.
Rugged Tablet
Key Features
5.5-Inch HD+ Touchscreen Interface
Bright and responsive display optimized for task management, reporting, and video monitoring—even in harsh outdoor or industrial lighting conditions.
Push-to-Talk (PTT) Communication
Enable instant voice communication across teams using LTE or Wi-Fi networks. Replace traditional radios with a smarter, more scalable solution.
Real-Time GPS Tracking and Geofence Alerts
Monitor field teams and mobile assets with precision. Set geofences to receive alerts when users enter or exit designated zones—ideal for workforce accountability and route compliance.
Integrated NFC-Enabled Guard Patrol System
Conduct and verify guard patrols using built-in NFC readers. Capture live checkpoint status, incidents, and timestamps for full audit trails and control room oversight.
Man Down Sensor and SOS Panic Button
Improve worker safety with automatic alerts for inactivity or falls, and a one-touch emergency button to notify supervisors instantly—backed by live audio and location sharing.
2D Barcode and QR Code Scanner
Built-in scanner supports access control, asset tracking, inventory management, and operational scanning in real time.
IP67 Dustproof and Water-Resistant Durability
Engineered for rugged use in construction zones, warehouses, outdoor patrols, manufacturing lines, and more.
Wireless Charging via Docking Station
Keep devices powered with cable-free charging docks that reduce wear and increase uptime across daily shift rotations.
-
Operating System
Android 11
-
Hardware Platform
MT6769V
-
Radio Frequency
GSM (B2/3/5/8); WCDMA (B1/2/5/8); TD-SCDMA (B34/39); LTE-FDD (B1/2/3/5/7/8/20); LTE-TDD (B34/38/39/40/41)
-
RAM
6GB RAM + 64GB Storage
-
Display
5.5” HD+ Screen, 720×1440
-
GPS
GPS, BeiDou, GLONASS, Galileo
-
WiFi
Supports 802.11 a/b/g/n/ac (2.4 & 5GHz)
-
Bluetooth
BT 5.0
-
NFC
13.56MHz
-
Interfaces
USB Type-C 2.0 OTG
-
Storage Expansion
Supports dual nano SIM or 1-SIM & 1-TF card (max. 128GB)
-
Data Capture
All major 1D and 2D symbologies
-
Front Camera
5 million pixels fixed-focus
-
Rear Camera
13 million pixels auto-focus & auto-exposure, with LED flashlight
-
Sensors
Accelerometer, Gyroscope, Magnetometer, Light & Proximity
-
Working Temperature
Operating at -20°C to 50°C; Storage at -30°C to 60°C; Humidity at 5% to 95% (non-condensing)
-
Battery
3.8V, 5000mAh
-
Standby Hours
500 hours
-
Operating Hours
> 16 hours (each scan at 5s interval)
-
Weight
274g (with battery)
-
Dimension
161mm x 74mm x 15mm
-
Protection
IP67, anti-drop 1.5 meters
-
Accessories
Desktop charger for 1-device & 1-battery; 4-slot battery charger
