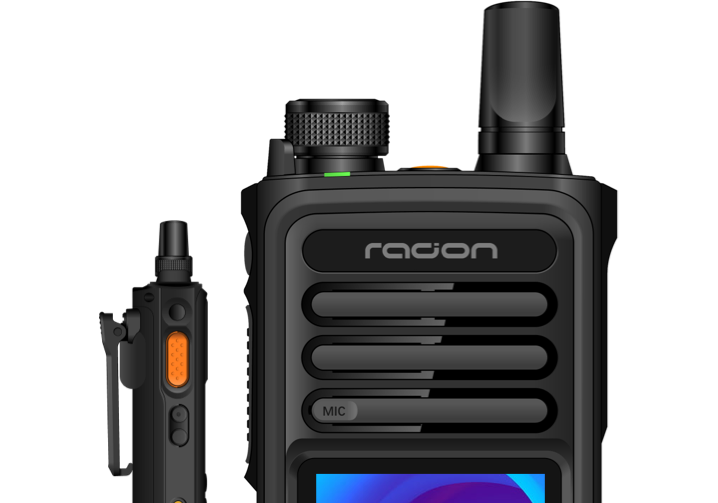

RADION R32
Intrinsically Safe Push-to-Talk Communication for Explosive Environments
The Radion R32 is built for one purpose: uninterrupted communication and worker safety in the most hazardous industries. Engineered with intrinsically safe hardware, this Push-to-Talk (PTT) device meets strict safety certifications for use in explosive gas and dust zones—making it the ideal choice for mission-critical operations in oil and gas, mining, chemical processing, and heavy manufacturing.
RADION R32
Intrinsically Safe Push-to-Talk Communication for Explosive Environments
The Radion R32 is built for one purpose: uninterrupted communication and worker safety in the most hazardous industries. Engineered with intrinsically safe hardware, this Push-to-Talk (PTT) device meets strict safety certifications for use in explosive gas and dust zones—making it the ideal choice for mission-critical operations in oil and gas, mining, chemical processing, and heavy manufacturing.
Key Features
Certified Intrinsically Safe for Hazardous Zones
Fully compliant with Zone 1 (gas) and Zone 21 (dust) certifications, the R32 is engineered to operate safely in explosive atmospheres where traditional devices pose ignition risks.
Mission-Critical Push-to-Talk Communication
Stay connected with real-time voice communication across nationwide LTE or Wi-Fi networks, even in the most remote or dangerous locations.
Wireless Charging with Safety Compliance
The R32 includes a wireless docking station to eliminate port-related sparks and reduce contact wear—ensuring safe and consistent charging in compliance with safety standards.
Man Down Sensor and SOS Panic Button
The integrated motion inactivity sensor and one-touch SOS button provide instant alerts in emergency scenarios, automatically notifying supervisors or control rooms when a worker is unresponsive or in distress.
IP68 Ruggedized Protection
Built to endure, the R32 features a fully dustproof and waterproof housing—ideal for challenging industrial conditions, including heavy moisture, grit, and debris.
Optimized for High-Risk Industrial Environments
Designed specifically for use in oil and gas facilities, mining operations, chemical plants, refineries, and other sectors where explosive risks and communication reliability are non-negotiable.
-
Operating System
Android 8.1
-
Hardware Platform
MTK8765
-
Radio Frequency
GSM (B2/3/5/8); WCDMA (B1/2/5/8); TD-SCDMA (B34/39); LTE-FDD (B1/2/3/5/7/8/20); LTE-TDD (B34/38/39/40/41)
-
RAM
512MB RAM + 4GB Storage
-
Display
1.77” TFT Screen, 128×160
-
GPS
GPS, BEIDOU, GLONASS & AGPS
-
WiFi
802.11 a/b/g/n, dual-band
-
Bluetooth
BT V4.2
-
USB Interface
Micro USB (EX version Type C)
-
SIM Card
SIM double card, Nano SIM
-
Sensor
Acceleration Sensor, Light Sensor, NFC (EX version does not come with NFC)
-
Speaker
36mm ⏀ 3.0W @ 106dB
-
Microphone
Sensitivity -42dB
-
Camera
None
-
Indicator LED
Single 3-colors LED
-
Accessories Connector
Support External Earphone
-
Working Environment
Temperature -20 °C - 60 °C, humidity 20% - 90%
-
Degree of Protection
IP68 & MIL810G, water & dust resistance, anti-drop 1.8 meters
-
Weight
261g
-
Battery Capacity
5,000/7,000mAh, replaceable (EX version 4,800mAh)
-
Size
117mm x 60mm x 29.2mm
-
IS Standard
II 2G Ex ib IIC T4 Gb IP68
II 2D Ex tb IIIC T120°C Db IP68
